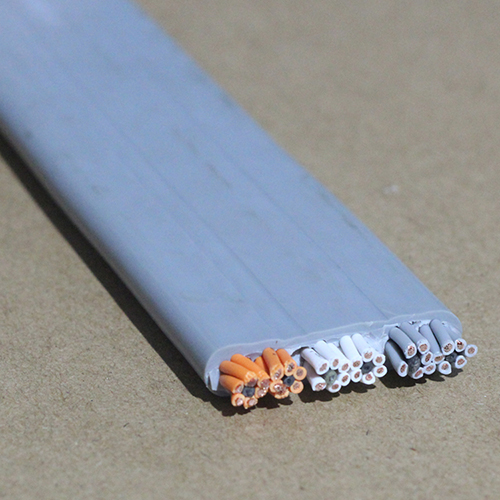

Elevator Flat Cable TVVB
TVVP LIFT FLAT Traveling CABLE
Part-No. |
Type |
No of cores |
Specification |
Width(MM) |
Thickness |
Density Kg/Km |
Shape |
||
EKM 800 00 |
54 |
02 |
TVVB |
2 |
0.75 |
8.0 |
4.6 |
69 |
Parallel |
EKM 800 00 |
54 |
03 |
TVVB |
3 |
0.75 |
10.4 |
4.6 |
91 |
Parallel |
EKM 800 00 |
54 |
04 |
TVVB |
4 |
0.75 |
13.7 |
4.6 |
119 |
Parallel |
EKM 800 00 |
54 |
05 |
TVVB |
5 |
0.75 |
17.1 |
4.6 |
146 |
Parallel |
EKM 800 00 |
54 |
06 |
TVVB |
6 |
0.75 |
19.4 |
4.6 |
168 |
Parallel |
EKM 800 00 |
54 |
07 |
TVVB |
7 |
0.75 |
21.8 |
4.6 |
190 |
Parallel |
EKM 800 00 |
54 |
08 |
TVVB |
8 |
0.75 |
24.1 |
4.6 |
212 |
Parallel |
EKM 800 00 |
54 |
09 |
TVVB |
9 |
0.75 |
26.5 |
4.6 |
233 |
Parallel |
EKM 800 00 |
54 |
10 |
TVVB |
10 |
0.75 |
28.8 |
4.6 |
255 |
Parallel |
EKM 800 00 |
54 |
11 |
TVVB |
11 |
0.75 |
31.2 |
4.6 |
277 |
Parallel |
EKM 800 00 |
54 |
12 |
TVVB |
12 |
0.75 |
33.5 |
4.6 |
299 |
Parallel |
EKM 800 00 |
54 |
13 |
TVVB |
13 |
0.75 |
35.9 |
4.6 |
320 |
Parallel |
EKM 800 00 |
54 |
14 |
TVVB |
14 |
0.75 |
39.2 |
4.6 |
348 |
Parallel |
EKM 800 00 |
54 |
15 |
TVVB |
15 |
0.75 |
41.6 |
4.6 |
370 |
Parallel |
EKM 800 00 |
54 |
16 |
TVVB |
16 |
0.75 |
43.9 |
4.6 |
392 |
Parallel |
EKM 800 00 |
54 |
17 |
TVVB |
17 |
0.75 |
46.3 |
4.6 |
413 |
Parallel |
EKM 800 00 |
54 |
18 |
TVVB |
18 |
0.75 |
49.6 |
4.6 |
441 |
Parallel |
EKM 800 00 |
54 |
19 |
TVVB |
19 |
0.75 |
52.0 |
4.6 |
463 |
Parallel |
EKM 800 00 |
54 |
20 |
TVVB |
20 |
0.75 |
54.3 |
4.6 |
485 |
Parallel |
EKM 800 00 |
54 |
21 |
TVVB |
21 |
0.75 |
56.7 |
4.6 |
506 |
Parallel |
EKM 800 00 |
54 |
22 |
TVVB |
22 |
0.75 |
59.0 |
4.6 |
528 |
Parallel |
EKM 800 00 |
54 |
23 |
TVVB |
23 |
0.75 |
61.4 |
4.6 |
550 |
Parallel |
EKM 800 00 |
54 |
24 |
TVVB |
24 |
0.75 |
64.7 |
4.6 |
578 |
Parallel |
Part-No. |
Type |
No of cores |
Specification |
Width(MM) |
Thickness |
Density Kg/Km |
Shape |
||
EKM 800 00 |
54 |
30 |
TVVB |
30 |
0.75 |
40.7 |
8.3 |
627 |
Twist |
EKM 800 00 |
54 |
36 |
TVVB |
36 |
0.75 |
44.4 |
9.0 |
743 |
Twist |
EKM 800 00 |
54 |
40 |
TVVB |
40 |
0.75 |
51.8 |
8.3 |
805 |
Twist |
EKM 800 00 |
54 |
42 |
TVVB |
42 |
0.75 |
50.6 |
9.0 |
850 |
Twist |
EKM 800 00 |
54 |
48 |
TVVB |
48 |
0.75 |
56.7 |
9.0 |
957 |
Twist |
EKM 800 00 |
54 |
54 |
TVVB |
54 |
0.75 |
62.9 |
9.0 |
1065 |
Twist |
EKM 800 00 |
54 |
60 |
TVVB |
60 |
0.75 |
69.0 |
9.0 |
1172 |
Twist |
EKM 800 00 |
54 |
66 |
TVVB |
66 |
0.75 |
75.2 |
9.0 |
1279 |
Twist |
Technical data:
Rated voltage: 300/500V
Test voltage: 2500V
Minimum bending radius: 0.3m≤L≤0.6M
Burning vertically test: GB/T1 8380.1-2001, IEC60332-1:1993 test passed
Used under the nomal conditions.the temperature of conductor is lower then 70
Temperature range:-15 to +70
TVVB (Parallel) free suspension length must not exceed 35 meters,and the lift speed 1.6m/s.
TVVB(interwist) free suspension length must not exceed 80 meters, and the life speed must not exceed 4m/s.
Standards:
GB5023.6, IEC60227-6, EN50214
Applications:
As control and signal cable for elevator as well as moving nachine parts, its bending radius is smaller compared with round cables due to the closely packed shielded cores or bundles, It can be installed in dry and damp rooms.
Structure:
The outer sheath is extensively resistant to oil and cooling liquid,
Conductor: Fine strands of bare copper wire, acc. to VDE 0295,class 5
Insulation: special PVC
Colour: yellow, white, orange with black number with white digital coding
Bearing: steel rope
Outer Sheath: flexible PVC , cold resistance, flame resistance
Colour: Grey(RAL 7001)
