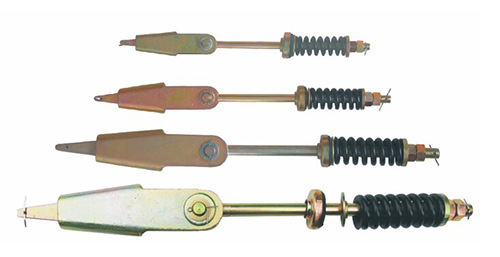

Flexible Rope Fastening
Flexible wire rope fastening socket
Specification of the wire rope: 6~8, 9~11, 12~13mm
Work with standard elevator parts
Place of Origin: China
Specification

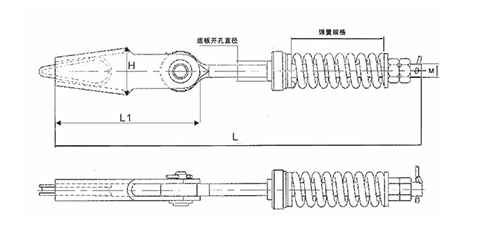

| Specification | Dia(Steel Wire) | L(mm)Length | B(Length of taper bushes) | C(Width of taper bushes) | D(Installation hole) | Screw Nut |
| HD8W | 6~8 mm | 435 | 150 | 45 | 26mm | M14 |
| HD10W | 9~11 mm | 510 | 180 | 57 | 26mm | M16 |
| HD13W | 12~13 mm | 595 | 230 | 74 | 30mm | M20 |
