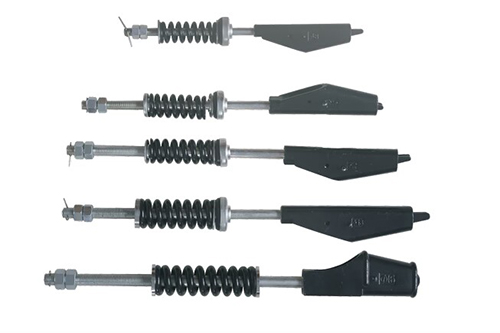

Spring Rope Fastening
Wire rope fasteners,wedge socket.Diameter: 8, 10,11, 12, 13, 16mm
You can buy this wire rope fastening with spring or without spring
The packing can be carton box and pallet

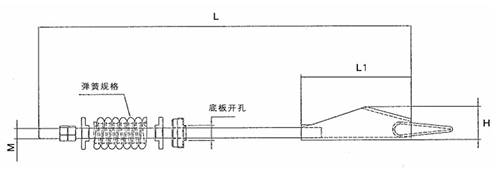

Specification
| Specification | Dia(Steel Wire) | A | B | C | D | Mounting Hole |
| QSD08W | 8 mm | 100 | 245 | 375 | M14 | 26 |
| QSD10W | 10 mm | 120 | 343 | 490 | M16 | 26 |
| QSD11W | 11 mm | 120 | 343 | 490 | M16 | 26 |
| QSD12W | 12 mm | 130 | 343 | 490 | M16 | 26 |
| QSD13W | 13 mm | 158 | 398 | 580 | M18 | 30 |
| QSD16W | 16 mm | 180 | 460 | 620 | M20 | 22 |
