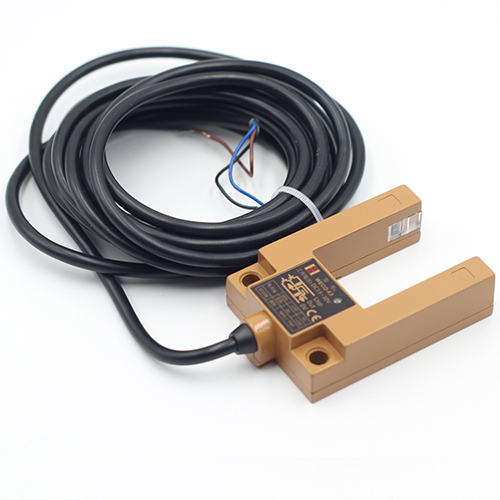

WECO-K3 Sensor Switch
Elevator Photoelectric Switch WECO-K3 Elevator Leveling Sensor,NPN,PNP,photoelectronical switch
Technical Features:
| Usp | 13-30 VDC |
| Power Consumption | Max40 mA(without load) |
| NPN output saturation voltage NPN | <1V(IL =100mA) |
| PNP output saturation voltage PNP | <2 V(IL =100mA) |
| Response Time | max1ms |
| Maximum output current | 200 mA |

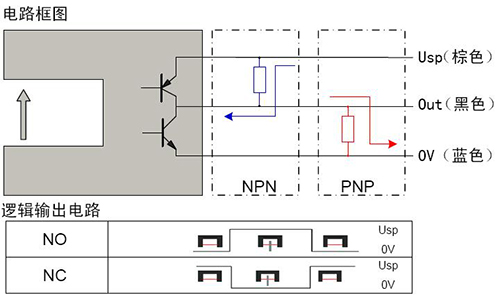

| Output mode | NPN/PNP,push-pull |
| OperatingTemperature | -20℃-65℃,100,000LUX |
| Protection Level | IP54 |
