Elevator Door Detector Q

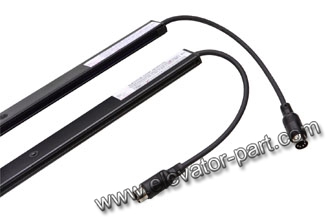

Elevator Door Detector WECO MOLIK Q

Technical Data:

Model WECOMXB Q/ WECO-917Q/ 957Q
Number of diodes 64
Maximum beams 154 beams
Highest Detecting height 1841 mm Elevator Door Detector
Lowest Detecting height 20 mm

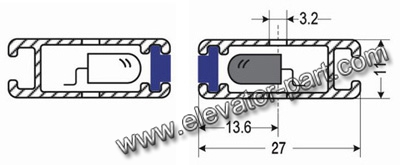

Profile dimension 2000mm (height) × 11mm (thickness) × 27mm (width)
Detecting distance  0 - 4000mm
Vertical tolerance +/- 10mm,7°
Horizontal tolerance +/- 3mm,5°
Response Time (Relay) 57.5ms
Cable reliability  30 million door movements
Power consumption ≤4W or 100Ma @ DC24V
Voice reminder Buzzer In RX,after continuous detection for 15s,buzzer On
Light immunity ≥100000 LUX
EMC compliance Emission to EN12015, Immunity to EN12016
Operating temperature range -20℃~+65℃
IP Rating IP54(TX,RX)
Vibration test     Random vibration 20 to 500Hz for 4hrs per axis(X,Y,Z)
Sinusoidal vibration 30Hz for 30mins per axis(X,Y,Z)



Power Supply:

Model Voltage Range
AC220V Input voltage 220V±15%
AC110V Input voltage 110V±15%
DC24V 10-30V

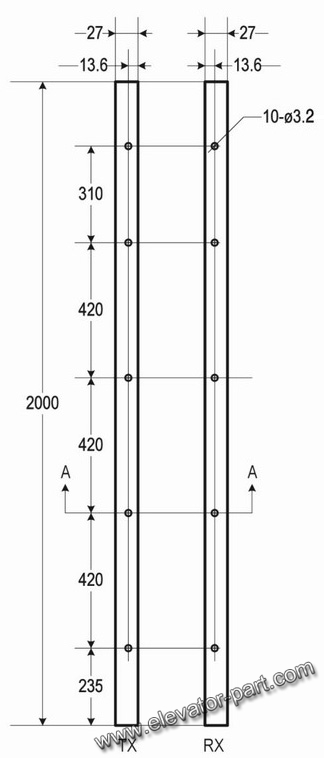

Installation drawing:

Packing List:

Item Quantity

Control Box ( Power Supply Unit )

1 PCS
Transmitter 1 PCS
Receiver 1 PCS
Flexible Cable 2 PCS
User Manual 1 PCS
Mounting Accessories 1 SET
