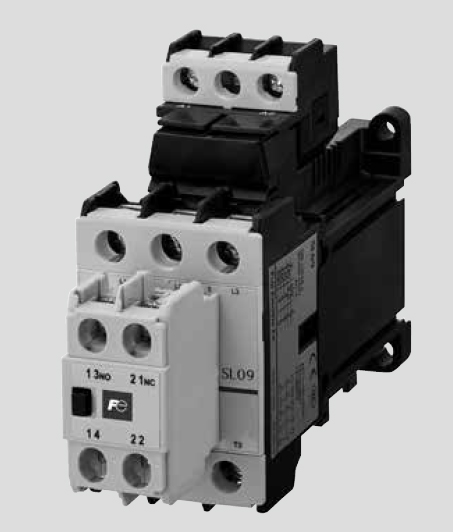

Fuji Electric, CHANGSHU FUJI SL Series Silent AC Contactor
CHANGSHU FUJI SL Series Contactors are including:
SL09-E11,SL09-F11,SL09-111,SL09-H11,SL09-211,SL09-M11,SL09-P11
SL09-E22,SL09-F22,SL09-122,SL09-H22,SL09-222,SL09-M22,SL09-P22
SL25-E11,SL25-F11,SL25-111,SL25-H11,SL25-211,SL25-M11,SL25-P11
SL25-E22,SL25-F22,SL25-122,SL25-H22,SL25-222,SL25-M22,SL25-P22
SL40-E11,SL40-F11,SL40-111,SL40-H11,SL40-211,SL40-M11,SL40-P11
SL40-E22,SL40-F22,SL40-122,SL40-H22,SL40-222,SL40-M22,SL40-P22
SL65-F11,SL65-111,SL65-H11,SL65-211,SL65-M11,SL65-P11
SL65-F22,SL65-122,SL65-H22,SL65-222,SL65-M22,SL65-P22
SL80-F11,SL80-111,SL80-H11,SL80-211,SL80-M11,SL80-P11
| Basic Model | SL09 | SL25 | SL40 | SL65 | SL80 | |
Rated capacity KW(AC-3) |
200/240V | 2.2 | 5.5 | 11 | 18.5 | 22 |
| 380/440V | 4 | 11 | 18.5 | 30 | 40 | |
| 500/550V | 4 | 11 | 18.5 | 37 | 37 | |
| 600/690V | 4 | 7.5 | 15 | 30 | 37 | |
| Rated current le A(AC-3) | 200/240V | 9 | 25 | 40 | 68 | 80 |
| 380/440V | 9 | 25 | 40 | 65 | 80 | |
| 500/550V | 7 | 17 | 29 | 60 | 60 | |
| 600/690V | 5 | 9 | 19 | 38 | 44 | |
| Contact Point | 1NO 1NC / 2NO 2NC |
1NO 1NC / 2NO 2NC |
1NO 1NC / 2NO 2NC |
1NO 1NC / 2NO 2NC |
1NO 1NC /
|
|
Realizing space saving and downsizing through the application of new technology
Space-saving and small-sized AC contactor
The high-efficiency magnetic system designed applying three-dimensional magnetic field analysis technology has realized the downsizing of the longitudinal size and installation area of the AC contactor.
Improvement of the environment is our main philosophy for product development.
Compliance with the ROHS directive (EU directive restricting the use of specific hazardous) by using materials that do not contain any of the 10 substances restricted by the ROHS directive (or which contain the specified value or less).
Recyclableoplastic materials are used for all major injection molded parts.
Also, the names of the materials used are all indicated for the convenience of recycling.
